Technical Specifications LG 86” Ultra Stretch Display |
| LG 86” Ultra Stretch Display |
| PANEL |
| Brightness |
Typ: 500cd/m2, Min : 400cd/m2 |
Life time
|
50,000 Hrs |
Viewing Angle(H x V)
|
178 x 178 |
Dynamic CR
|
500,000:1 (Typ) : TBD |
Contrast Ratio
|
1,100:1(Typ) |
Screen Size
|
86" class (TBD") diagonal |
Response Time
|
8ms (G to G BW) typ. |
Surface Treatment
|
AGP (10% Haze) |
Orientation
|
Landscape / Portrait |
Aspect Ratio
|
58:9 |
Native Resolution
|
3,840 x 600 (UHD) |
Panel Technology
|
IPS |
|
PHYSICAL SPECIFICATION |
| Bezel Colour |
RS232C(1), RJ45(1), IR / Light sensor(1) |
VESA TM Standard Mount Interface
|
HDMI(2), DP(1), DVI-D(1) |
Packed Weight
|
DVI-D, Component |
Carton Dimensions (W x H x D)
|
Yes(3) USB 3.0 : 1EA USB 2.0 : 2EA |
Weight (Head)
|
HDMI, Display Port : 720p, 1,080i, 1,080p, 2,160p (HDMI_1 : Up to 60Hz, Other : Up to 30Hz), DVI : 720p, 1,080i, 1,080p |
Bezel Width
|
4.4mm (L/R), 5.9mm (T/B) |

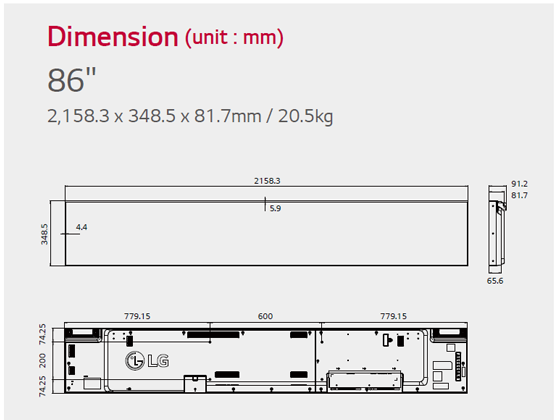

Monitor Dimension (W x H x D)
|
2158.3 x 348.5 x 81.7mm |
|

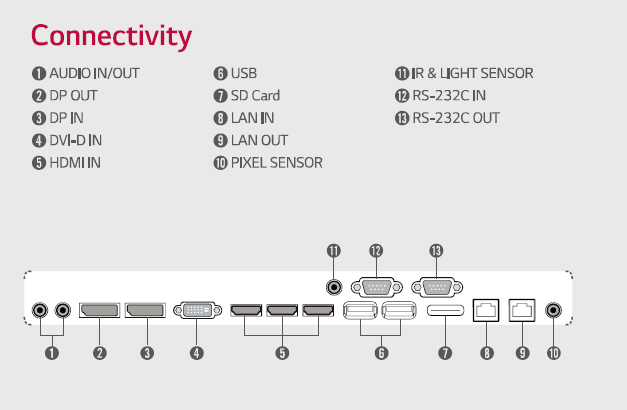

CONNECTIVITY |
Input
|
HDMI, DP, OPS, DVI-D, USB2.0, USB3.0, SD Card |
External Control
|
RS232C, RJ45, IR+B Receiver, Pixel Sensor, Analog Audio |
Output
|
Analog Audio |
|
OTHER |
|
|
| SPECIAL FEATURES |
Yes
|
Temperature Sensor
Auto Brightness Sensor
Tile Mode
Natural Mode @ Tile Mode
ISM Method
Energy Saving
Smart Energy Saving
File Play with USB/SD/Internal Memory
PIP/PBP
8GB (System 4GB + Available 4GB)
Wi-Fi Dongle Ready
4K Up Scaling |
|
| MEDIA PLAYER COMPATIBILITY |
OPS type compatible
|
Yes |
External Media player Attachable
|
No |
|
| POWER |
Power Consumption Smart Energy Saving
|
30% of typical |
Power Consumption Typ. / Max.
|
180W/220W |
Power Supply
|
100 -240V~, 50/60Hz |
Power Type
|
Built-In Power |
|
| STANDARD CERTIFICATION |
Safety
|
UL / cUL / CB / TUV / KC |
EMC
|
FCC Class "A" / CE / KC |
|
| SOFTWARE COMPATIBILITY |
SuperSign C
|
Yes |
SuperSign W/Lite
|
Yes |
|
| WARRANTY |
| Warranty |
3-Year Limited Warranty (Parts and Labour) | Extended Warranties Available |
|
| ACCESSORIES |
Basic
|
Remote Controller (2ea Batteries included), Power Cord, DP (3M), RS-232C Cable (3M) Owner's Manual (Website upload) |
| Optional Accessory |
AN-WF500 (WiFi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor) ** Stand is not available |
|
| ENVIRONMENT CONDITIONS |
| Operation Temperature Range |
0 °F to 40 °F |
|
|
|
|
|
| |
|
|
