Technical Specifications Vidcom 60" |
| Model No. |
C60PW120 |
| Screen Size |
60” (16:9) |
| Resolution |
1,365 (H) x 768 (V) |
| Peak Brightness
(cd/m2) |
700 (with AG filter)
1,700 (without filter) |
| Contrast Ratio |
Typical 1,000,000 : 1 |
| Filter Type |
AG Film Filter |
| Bezel (Seam Size) (mm) *active to active |
0.9 (1.8) |
| Operating Temperature |
0 ~ 40 ºC |

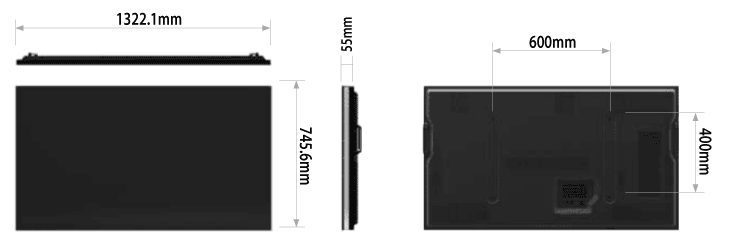

| Outline Dimension (wxhxd)(mm) |
1,322.1 x 745.6 x 55 |
| Weight (kg) |
33 |
| Expected Life-time |
100,000 hrs |
| Input Voltage (50/60Hz) |
AC 100 ~ 240V |
| Power Consumption (W) |
Typical 473 |
| Accumulated Power Consumption (Wh) |
Typical 347 |
| Accumulated Power Consumption (W/in2) |
Typical 0.22 |
| Input |
HDMI/RGB/DVI/RS232C/DisplayPort/Composite |
| Output |
DVI/RS232C/Sound out |
| USB |
1 (SVC only) |
| LAN(APL only) |
1 |
| LAN (Network control) |
1 |
| Function |
2 Modes (Standard/Studio) |
| Tile Mode(11 x 11) |
| Energy Saving Mode |
| Daisy Chain(DVI Max 9) |
| USP |
600Hz Sub-field Driving |
| Image Sticking(ISC) |
Management Program
(RS232C & Network) |
| St-By Power Consumption : 0.5W↓ |
| DPM Power Management : 1W↓ |
|
|
|
| |
|
|
